Smart Card Cleaning
Socket Cleaning
IMT800MV-Manual Socket Cleaner
- On-line logic socket cleaning
- CE mark certified machine
 |
M/C Type | Mobile & Manual |
| Cleaning Target | Final Test Sockets (BGA & TSOP & Rubber & RF etc) | |
| Cleaning Laser | IMT made DLC laser | |
| Laser Beam | Max. 400mJ/pulse, Max. 10Hz | |
| Dimension | (L)1,200 x (W)320 x (H)1,050 mm | |
| Weight | Approx. 170 Kg | |
| Utilities | 220VAC, 50/60Hz, 1 Phase, 20A | |
| Delivery | 8 weeks |

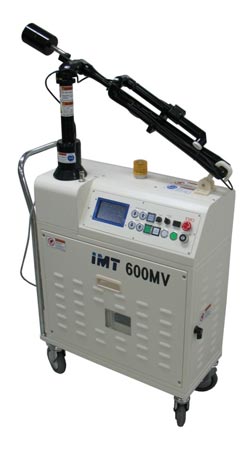

IMT600MV-Manual Socket Cleaner
- On-line logic socket cleaning
- CE equivalent system
 |
M/C Type | Mobile & Manual |
| Cleaning Target | Final Test Sockets (BGA & TSOP & Rubber & RF etc) | |
| Cleaning Laser | IMT made DLC laser | |
| Laser Beam | Max. 300mJ/pulse, Max. 5Hz | |
| Dimension | (L)650 x (W)320 x (H)680 mm | |
| Weight | Approx. 110 Kg | |
| Utilities | 220VAC, 50/60Hz, 1 Phase, 20A | |
| Delivery | 8 weeks |
IMT200CT-Cleaning & Test System
- Ideal Off-line Socket Maintenance Tool
 |
M/C Type | Automatic Cleaning & Test |
| Cleaning Target | Final test sockets (BGA, Rubber, TSOP etc) | |
| Pin Test Target | Pogo Pin, Rubber socket | |
| Measuring Items (F, D, Rc) | Spring Force, Pin Height, Contact Resistance | |
| Pin Position Detection | Automatic detection using machine vision | |
| Laser Cleaning | *Option. Only tester available | |
| Utilities | 220VAC, 20A, 50/60Hz, 1 phase, Blowing air(5kgf, 8mm) | |
| Dimension | (W)970x(D)1040x(H)1730 mm | |
| Delivery | 12 weeks |
Probe Card and hi-fix board cleaning
IMT400S- Fully Automatic Cleaner
- Off-line Probe card & Hi-fix Board cleaning
 |
M/C Type | Fully Automatic Cleaning |
| Cleaning Target | Probe Card & Hi-fix Board for memory test | |
| Cleaning Laser | IMT made DLC laser | |
| Cleaning Speed | <10min/300mm Probe card < 20 min/256para HiFix board | |
| Dimension | (W)1.3 x (D)1.2 x (H)1.4 m | |
| Weight | ~ 500kg (approx.) | |
| Utilities | 220VAC, 50/60Hz, 1 phase, 20A | |
| Delivery | 12 weeks |
Probe card and test socking cleaning

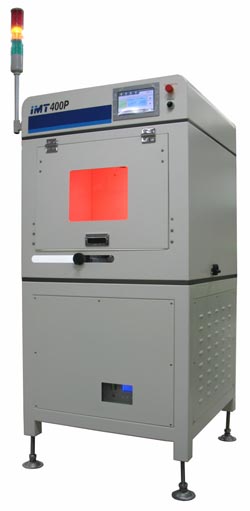

IMT400P- Semi-Auto Cleaner
- Off-line Probe card & Test Sockets cleaning
 |
M/C Type | Semi-auto manual cleaning |
| Cleaning Target | Probe Card & Test Sockets & Precision Parts | |
| Cleaning Laser | <20min/300mm Probe card | |
| Dimension | (W)0.8 x (D)0.8 x (H)1.6 m | |
| Weight | ~ 200kg (approx.) | |
| Utilities | 220VAC, 50/60Hz, 1 phase, 20A | |
| Delivery | 8 weeks |
